Need a precise Double Trailer Truck CAD block for space planning and access design? This design vehicle follows international truck dimensions, not fantasy proportions. Use it to check turning radii, lane widths, and loading-dock clearances in architectural or civil drawings.
The Double Trailer Truck uses realistic overall design dimensions. The full combination is approximately 31.5 m long, 2.9 m wide, and 4.4 m high. These values give you a generous design envelope for parking studies, service yards, and road geometry checks. For more articulated and rigid vehicles, visit our Trucks CAD drawings category.

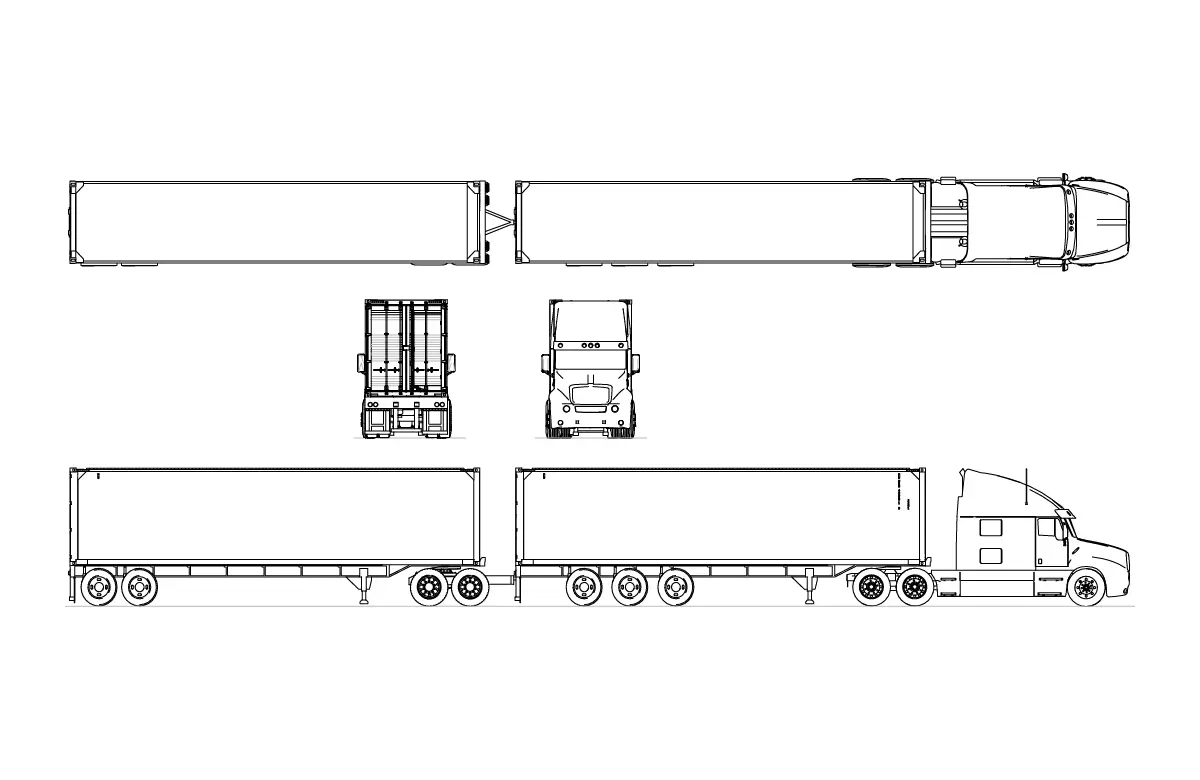

This Double Trailer Truck CAD block focuses on clarity and accuracy. The geometry is clean, with simplified outlines that keep file size low but preserve key dimensions. You get plan, side, and front views to coordinate vertical and horizontal clearances on one sheet. The block works well in AutoCAD and other DWG-compatible platforms, and you can copy, mirror, or array it quickly when you test different site layouts.
Whether you are an architect, traffic engineer, or vehicle design professional, this standardized truck envelope is a powerful tool in your CAD library. Combine it with our Trucks CAD blocks and drawings to keep transport layouts consistent, code-compliant, and easy to review.
If you need reliable dimensions for ramps, loading bays, and turning areas, download the Double Trailer Truck CAD block now and design with confidence in real-world conditions.
| Version | 2.1 |
|---|
