Opaque Eye Protection Must Be Worn Sign CAD Block

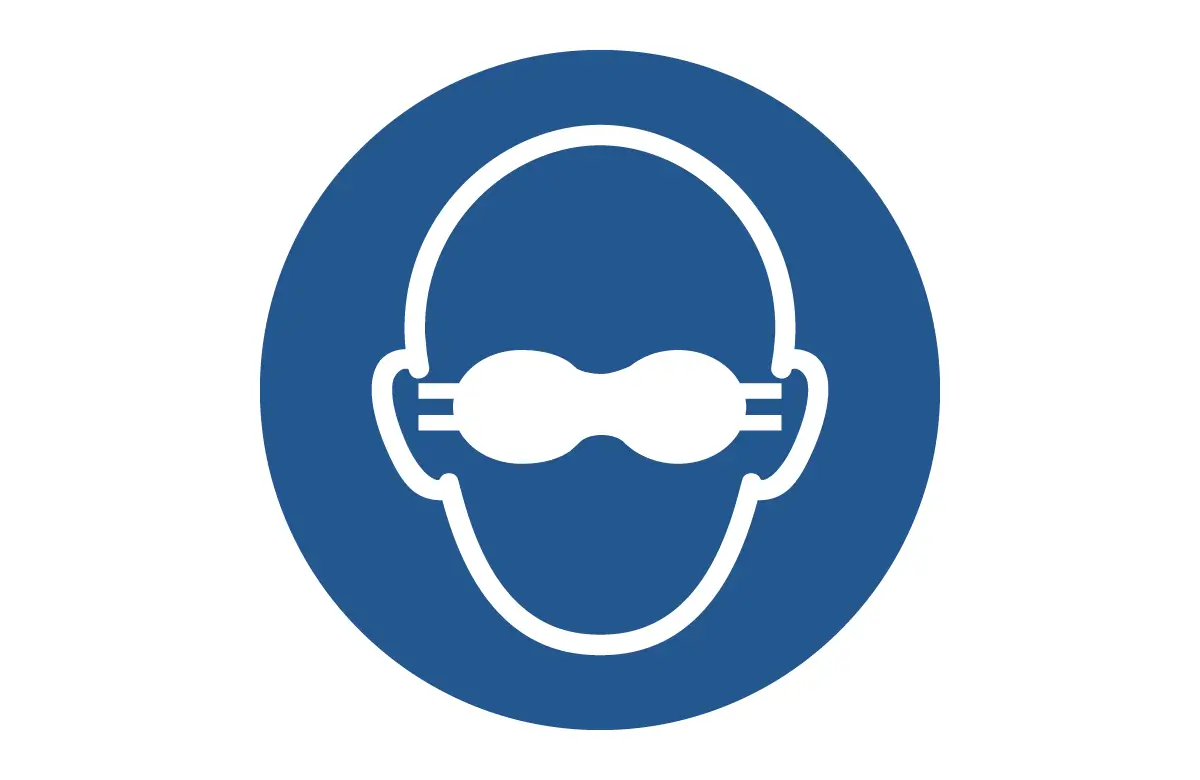

The Opaque Eye Protection Must Be Worn Sign CAD Block (ISO 7010 M007) helps safeguard workers in areas where intense light, lasers, or hazardous visual conditions pose serious risks. It clearly instructs personnel to wear opaque safety eyewear, reducing the chance of injury and ensuring compliance with workplace safety rules. In particular, this sign proves essential in situations where clear lenses offer inadequate protection.
The Mandatory sign CAD blocks features a blue circular background with a white symbol of a safety boot. The design aligns with ISO 7010 and ISO 3864-1 standards for mandatory signage. Blue signifies a required action, and this symbol reinforces the obligation to wear protective footwear in hazardous work areas.
You can integrate this CAD block into AutoCAD or any other CAD platform with ease. Moreover, it fits well in laser testing areas, welding zones, optical labs, and manufacturing sites where high-risk lighting is present. Standard print sizes range from 200 mm to 400 mm in diameter. However, larger signs are often required in expansive or high-traffic environments to improve visibility. Because of its vector-based format, the design remains crisp and clear at any size.
Opaque Eye Protection Must Be Worn Sign Key Features
- Detailed and accurate CAD drawing of ISO 7010 M007 safety symbol
- Designed according to ISO 3864-1 color and layout guidelines
- Seamlessly compatible with AutoCAD and other drafting platforms
- Perfect for welding rooms, laser zones, and hazardous lighting areas
- Free Download
Applications
Use this symbol wherever workers face exposure to dangerous light sources. For example, welding bays, laser-equipped rooms, and optical testing areas benefit greatly from this visual reminder. It also improves safety awareness in control rooms, inspection lines, and labs. Consequently, including this symbol in your CAD drawings supports PPE policies and reduces liability risks. You can find similar symbols in our full collection of Safety sign CAD blocks to support consistent design and compliance. You can also download the ISO 7010 Mandatory Signs Full CAD Block Set to access all symbols in DWG, PDF, and SVG formats.
Compliance
This CAD block meets ISO 7010 (M007) and ISO 3864-1 requirements for mandatory safety signage. As a result, it ensures international consistency and enhances technical drawing clarity.
