Wear Protective Gloves Sign CAD Block
The Wear Protective Gloves Sign CAD Block (ISO 7010 M009) is essential for ensuring hand safety in environments where there is a risk of contact with hazardous substances, sharp edges, extreme temperatures, or mechanical injury. This mandatory action symbol serves as a clear visual reminder that personnel must wear protective gloves to reduce hand-related accidents and comply with workplace safety standards.

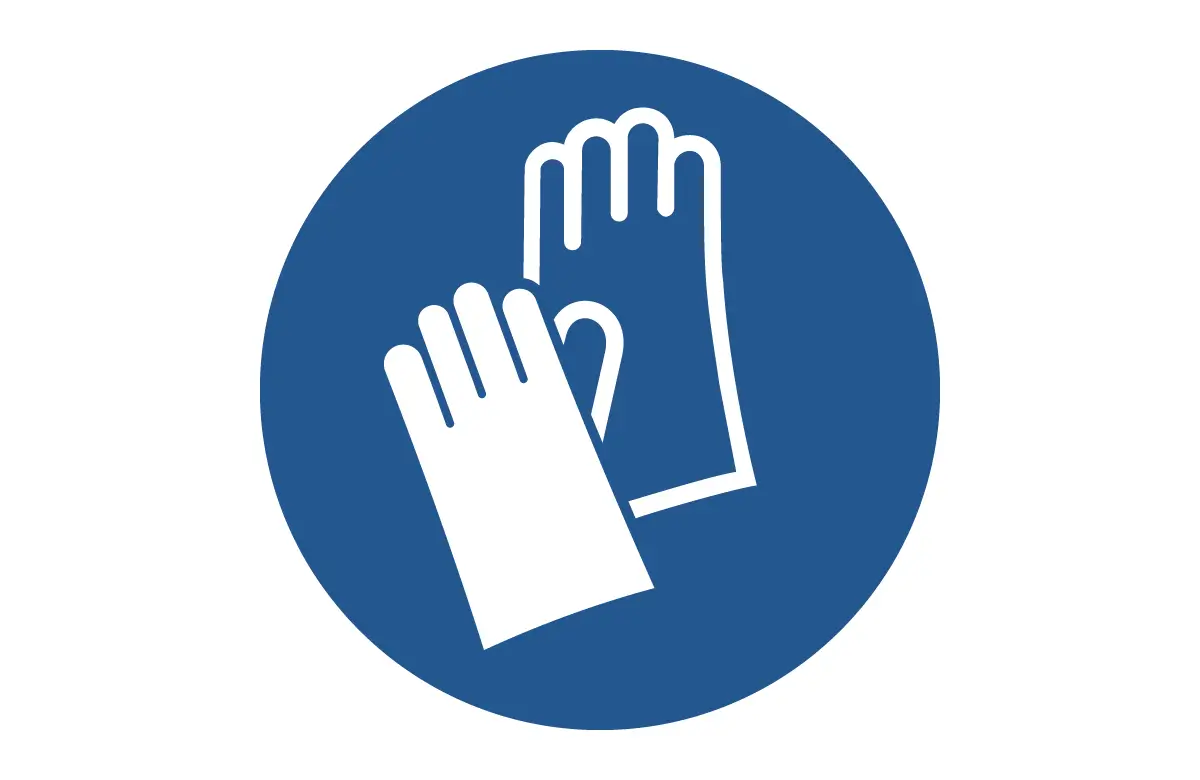

The Mandatory sign CAD blocks display a blue circular field with a white glove symbol in the center. According to ISO 7010 and ISO 3864-1 design guidelines, this color and shape combination communicates a required action. Therefore, the symbol effectively reinforces the obligation to wear hand protection in designated areas.
You can easily incorporate this CAD block into AutoCAD or any compatible drafting platform. It is ideal for laboratories, industrial workshops, construction zones, manufacturing plants, and maintenance areas where exposure to chemical, thermal, or physical hazards is common. Sign sizes typically range from 200 mm to 400 mm in diameter, depending on visibility requirements and workplace dimensions. The scalable vector format guarantees crisp rendering at all sizes, preserving detail and clarity.
Wear Protective Gloves Sign Key Features
- Accurate CAD drawing of the ISO 7010 M009 mandatory action symbol
- Conforms to ISO 3864-1 requirements for color, shape, and layout
- Compatible with AutoCAD and other major CAD applications
- Perfect for use in technical documentation, site plans, and safety schematics
Applications
Use this sign wherever hand protection is required to prevent injury from hazardous contact or abrasion. Common settings include chemical storage rooms, machine shops, healthcare facilities, and areas with sharp or hot surfaces. By including this CAD block in your safety plans and documentation, you help foster a culture of PPE compliance and injury prevention. You can also explore our full range of Safety sign CAD blocks to ensure consistency across your designs. You can also download the ISO 7010 Mandatory Signs Full CAD Block Set to access all symbols in DWG, PDF, and SVG formats.
Compliance
This CAD block adheres to ISO 7010 (M009) and ISO 3864-1 signage standards, providing global consistency in mandatory safety communication. It helps support occupational safety regulations and improves awareness of protective measures in technical documentation.
For additional options and symbols, explore the complete ISO 7010 safety signs and symbols collection or learn more about international signage on Wikipedia.
